The EM Unit at CSIR-CDRI houses two major microscopy facilities –

(i) JEOL JEM1400 Transmission Electron Microscope
(ii) FEI Quanta 250 Scanning Electron Microscope

These facilities are primarily used for various R&D projects within the institute and occasionally by external users. The EM Unit participates and contributes significantly to all disease areas of the institute by using its expertise in electron microscopy to carry out ultra-structural studies and sub-cellular localization of macromolecules of biological interest.

Our state of the art facility offers expertise in electron microscopy (TEM/SEM), from designing experiments, specimen preparation to image analysis and interpretation, for a wide variety of biological samples. We have experience with a full spectrum of biological specimens /applications along with excellent resources for both research and training.

We invite national and international collaborations and are happy to be able to provide support for industrial, government and academic research. Skill development/training programs and workshops are also organized by this Unit.


Dr. Kalyan Mitra, Principal Scientist and In-charge EM Unit
• Ms. Garima Pant, Technical Officer
• Mr. Jeevan Prakash Pandey, Technical Officer
•Mrs. Madhuli Srivastava, Senior Technician

Research Fellows

•Mr. Rohit Sahai, DBT-JRF
•Mrs. Sweta Padma Majhi, CSIR-SRF
•Mr. Rakesh Sharma, CSIR-SRF
•Ms. Nisha Kumari Singh, UGC-SRF
•Ms. Juhi Sharma, INSPIRE Fellow


We also offer the following services to external users on payment basis:

Services offered for TEM/ SEM

Charges (Rs.) Private industries/Academic/R & D Institutes
TEM (Model: Jeol JEM1400 /120 kV)
Negative staining (per grid)
Viewing grids / imaging (per hr)

SEM (Model: FEI Quanta 250)
Specimen Preparation per sample
Viewing per hr


• 18% GST extra charged.
• Service charges are payable in advance by crossed bank draft in favour of the Director, Central Drug Research Institute, Lucknow-226031.
• Prior booking/appointment has to be confirmed by writing to Dr. K. Mitra (In-charge EM Unit) at

Request Form (For External users)

➤  1. Link for TEM Request Form

➤  2. Link for SEM Request Form

Major Equipment and Instrumentation

Transmission Electron Microscope

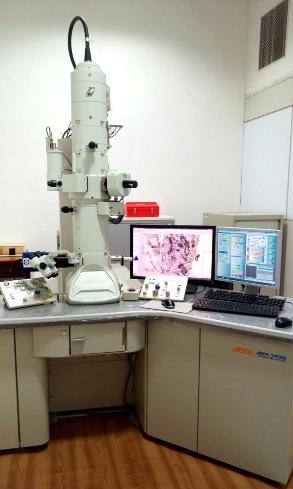

Model: Jeol JEM 1400 (Jeol Ltd., Tokyo, Japan)

• Easily changeable accelerating voltages from 40-120 KeV
• Tungsten emitter; motorized goniometer
• Magnification up to 300000X
• Equipped with Gatan Erlangshen and Orius CCD cameras
• Anti-contaminator device

High resolution /high contrast lens system; Minimum/low dose imaging for radiation sensitive samples; option for LaB6 emitter; tomography

Resolution: Point: 0.38 nm/lattice: 0.2 nm

Nano-characterization; Negative staining TEM; ultra-structural studies of biological specimens

Electron Microscopy Unit

Scanning Electron Microscope

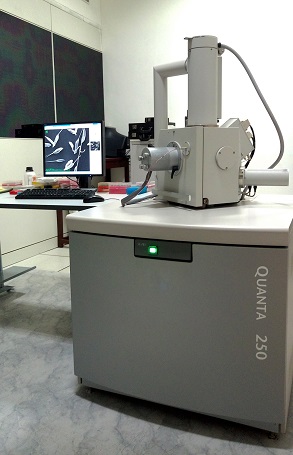

Model: FEI Quanta 250 (FEI, The Netherlands)

• High Tension 200V – 30 kV; TMP pumped system
• Tungsten emitter
• 2 inch/50 mm 4-axis motorized stage equipped with through-the-lens differential pumping
• Detectors: SE; BSED and LFD
• High vacuum (HV) and low vacuum (LV) modes
• Magnification up to 1000000X

Multi-stub holder can hold upto 7 specimens; Provision for observation of samples with minimum sample prep.

Resolution: 3 nm at 30 kV with SE and 4 nm with BSE detector (HV mode)

Surface morphology analysis of all kinds of conductive and non-conductive samples.
